Mini PCIe mSATA SSD to 2.5" SATA III 3 Adapter Card with 7 mm thickness Case BLK

FOB Reference Price:Get Latest Price
US $3-4.9 / Cases | 100 Case/Cases (Min. Order)
Report Suspicious Activity
Quick Details
Products Status:
Brand Name:
Model Number:
Place of Origin:
Guangdong, China (Mainland)
Connect with:
2.5" hdd
One year
7 mm thickness
100 mm*70 mm*7 mm
neutral pack
Supply Ability
Supply Ability:
10000 Case/Cases per Week
Packaging & Delivery
Packaging Details piece packed in one box your special requirement
Lead Time :
Timely within 5-7 working days after confirmed payment

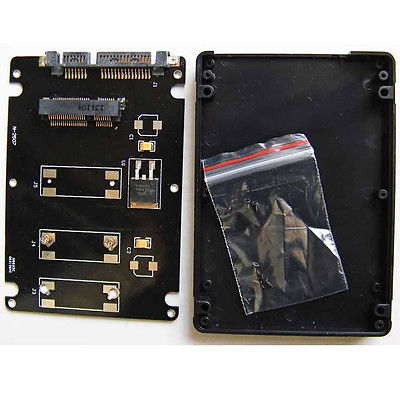

Mini PCIe mSATA SSD to 2.5" SATA III 3 Adapter Card with 7 mm thickness Case BLK

1:Support mSATA SSD converted into a standard 2.5" SATA interface.
2:The speed and other properties is not changed,only form conversion interface,because such transformation does not need through the integrated circuit chip.
3:The main body is plastic,it is very light.
4:You can connect it to laptop or desktop,without any driver

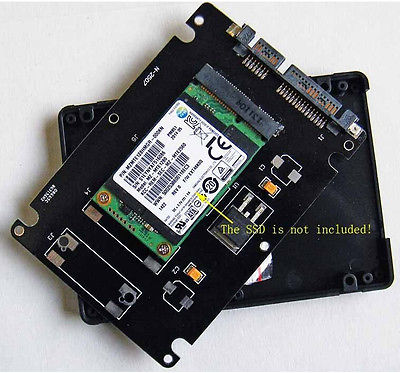

5:The product only support mSATA Mini PCIE SSD,it dose not support SATA Mini PCIE SSD and PATA Mini PCIE SSD.

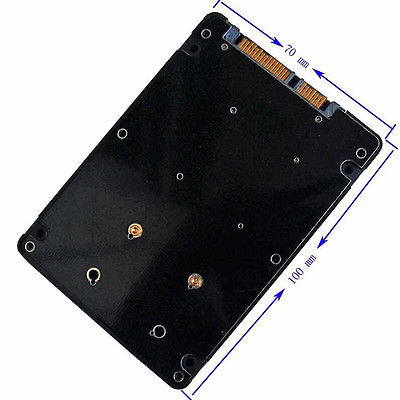

6:Size:100 mm*70 mm*7 mm
7:Color: Black
About Mini PCIe SSD interface standard:

1.Mini PCIe interface defined there are six,A: mSATA Solid State Drive,using SATA protocol;B: SATA MINI PCIE Solid State Drive,its nature is SATA interface,but the pin definition is different compared with mSATA solid State Drive; C: PATA MINI PCIE Solid State Drive, its nature is IDE interface;D: Raid mSATA;E:3G or WIFI module;F:Inter Turbo Memory.Six types of interface definition looks exactly the same,so please be sure to distinguish your solid state drive's interface definition.
2:Mini PCIE interface solid hard except has interface definition of the difference, also has length of distinction: A: half high, length 2.7 cm; B: full high, length 5 cm; C: length 7 cm, Please Leave message to indicate about the length of of solid hard,we can according to you of solid hard size for shipping, If no message indicate ,we are according to default 5 cm length shipping!


1:Please identify interface definition of your SSD,determine the length of your SSD.
2:Please check your computer can support the SSD,some computer is too old,it is not compatible with SSD;There are some brand computer for a particular type of SSD is not compatible.
3:Please connect the adapter card in your computer hard disk drive interface test or with USB hard disk box to test the adapter card (Do not connect USB interface test if Your hard disk rated current is greater than 1.2A,because maximum power supply current is 500 mA of USB 2.0 port,maximum power supply current is 900 mA of USB 3.0 port),if the SSD with a test method can't identify by computer,change other test method to check the SSD,If still can't identify please try to replace a computer,this operation can be ruled out compatibility problems.
4:Mac OS and some digital camera system use disk format can't compatible with Microsoft system,new SSD if there is no partition,open the "my computer" can't see the ssd, please use the Disk Manager in Windows to delete the partitions or to create a new partition on the SSD.
5:This product performance is being improved unceasingly, like has the change, not separate informs even slightly.Pictures for reference only, subject to our available products.
Package Included:
1 x  mSATA SSD to 2.5" SATA adapter card
